4995mm Wide Glass Partition Kit – Single Door, 10mm Toughened Glass
£1,711.23 £1,426.02
4995mm wide office glass partitioning kit — a complete glass partition wall for larger offices or open plan spaces. This kit includes a single frameless glass door (positioned to one side), 4 fixed glass panels, aluminium channels in your choice of 4 colours, and all gaskets, seals, and door hardware.
Select your ceiling height from the dropdown — available from 2050mm to 2700mm in 50mm increments. Everything arrives ready to install, with a 7 day lead time, delivered UK-wide.
SKU
SPW-SD-S-4995
4995mm Wide Glass Partition Kit – Single Door, 10mm Toughened Glass is available to buy in increments of 1
This 4995mm wide frameless glass partitioning kit gives you everything needed to create a glass partition wall for larger offices or open plan spaces. At 5.00m wide, it suits conference rooms, open plan offices, and co-working spaces.
Select your ceiling height from the dropdown above — the kit is available from 2050mm up to 2700mm and all glass and components are cut to your chosen height. The base price shown is for 2050mm; taller heights cost a little more to cover the additional glass.

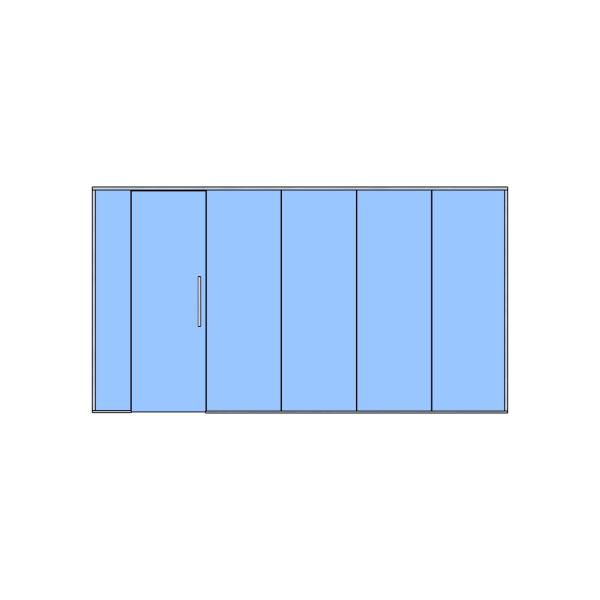

The layout features a single frameless glass door (positioned to one side) with 4 fixed glass panels and 1 infill panel, connected using 3 dry joins. All glass is 10mm BS6206/BS EN 12600 certified toughened safety glass.
All aluminium channels (tracks) are included and available in Silver (RAL 9006), Black (RAL 9005), Anthracite (RAL 7016), or White (RAL 9010). Door handles and hydraulic floor hinges come in satin stainless steel as standard, with a black upgrade option.
What's Included
Components listed at 2050mm ceiling height (dimensions adjust with your height selection):
- 1x 1998mm x 900mm frameless glass door (10mm toughened)
- 1x 2025mm x 150mm infill panel (10mm toughened)
- 4x 2025mm x 973.2mm fixed glass panels (10mm toughened)
- 2x Ceiling U channel (3m aluminium track)
- 4x Floor and wall 2-part channels (3m aluminium track)
- 12x Gasket seals for 10mm glass
- 3x 180° dry joins for panel-to-panel connections
- 1x 800mm H door handle
- 1x Hydraulic floor hinge kit
- 1x Blanking plate
Installation
This glass partition kit is suitable for DIY installation or professional fitting. Our step-by-step fitting guide covers everything from marking out to hanging the doors. If you'd prefer a professional installation, see our fitting service.
Need a Different Width?
This is one of our pre-configured kits for quick ordering. If you need a different width, use our online glass partition calculator to get an instant price for any dimensions. You can also choose from 12mm or acoustic glass options in the calculator.
Need help choosing? Call us on 0800 772 3992 or email [email protected].
| Weight | 255.994000 |
|---|---|
| Colour | Clear |
