Industrial Glass Partitions

Industrial Style Glass Partitions

Black banded glass partitions in toughened glass and powder coated aluminium, made to your measurements. Price your opening online and order the same day.

Configure & Buy Online

Priced online, instantlyEnter your opening and see the price. No quote, no waiting.

Made to measure glassWe work out the panel sizes and toughen the glass to suit your opening.

Delivered in as little as 7 working daysSupplied as a complete kit, ready to install.

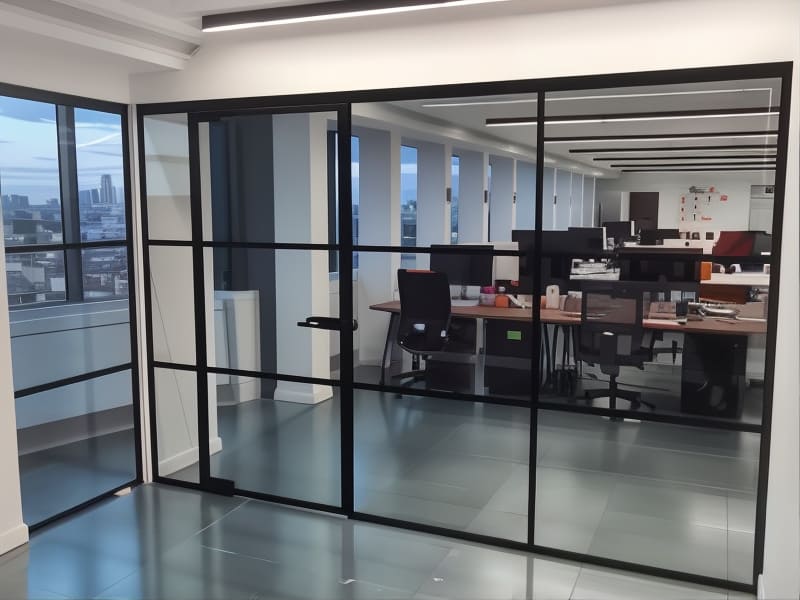

Industrial glass partition with black banding enclosing a meeting room

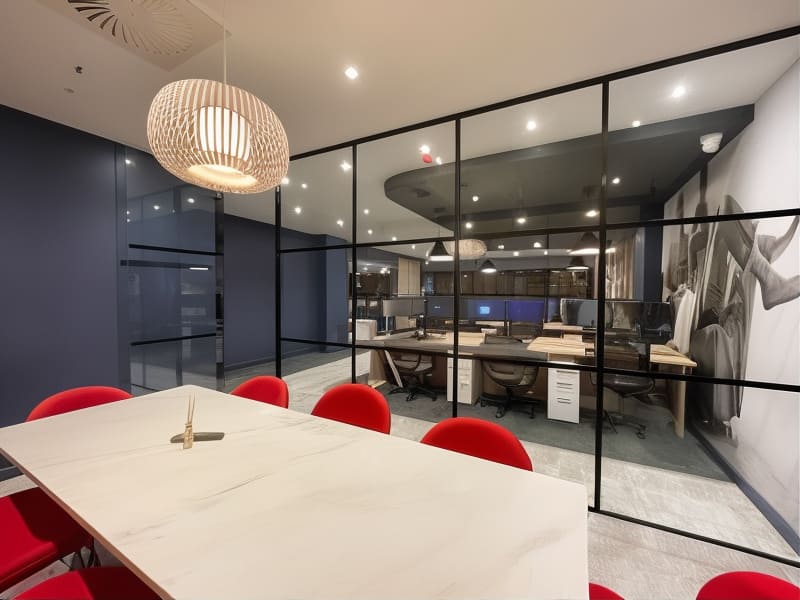

Industrial glass partition with black banding and a framed door in an open plan office

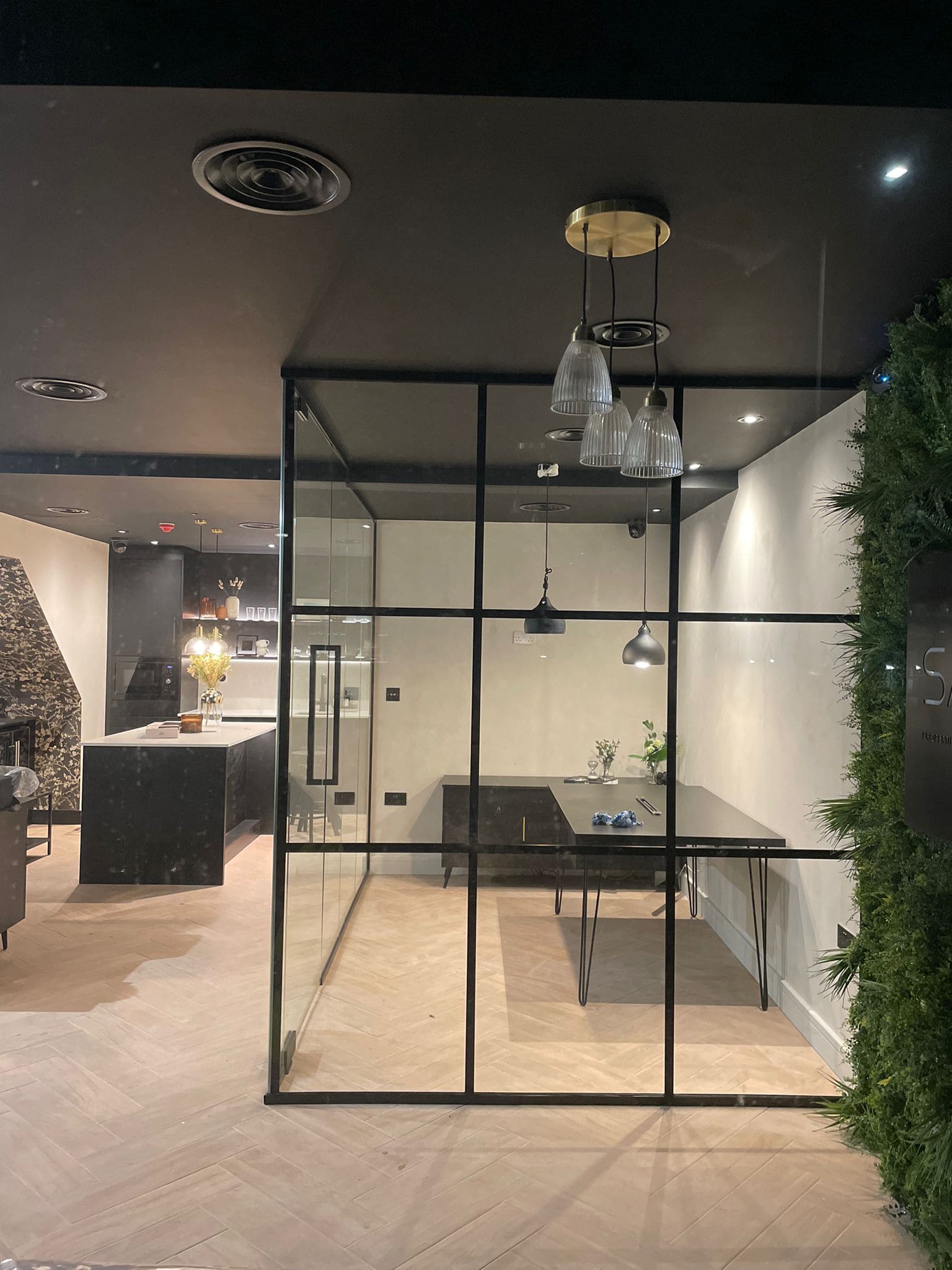

Industrial style glass partition with black banding in a breakout space

How the banding works

An industrial glass partition is built from full height toughened glass panels. Aluminium flat bars are then applied to the face of the glass with the tape supplied, on both sides, to create the banded effect.

Vertical bars sit over the joins between panels. Horizontal bars run across the glass, and because the bars are cut to length as they are fitted, the horizontal positions are set on site. The drawing supplied with your order shows them evenly spaced.

The system is aluminium and glass, not fabricated steel, so the partition is lighter to handle, is configurable on site, and costs considerably less.

Choosing your door

Framed door

The frame goes around the opening rather than around the door itself, so the bars run horizontally across the leaf and not down its edges. The door shuts onto a rebate in the frame, which makes it better for sound reduction.

Adds £571.50 excluding VAT, whatever the size of the opening.

Frameless door

A frameless door makes the door leaf itself look framed. A flat bar runs around the face of the leaf, an angled bar wraps the edge behind it, and the panels either side take a matching bar.

The doorway reads as framed from both sides, even though there is no frame in it.

Specification

Item	Detail
Glass	10mm toughened up to 2600mm high, 12mm toughened up to 3000mm. 12.8mm acoustic laminated is available on partitions with no door, or with a framed door.
Flat bars	25mm and 30mm wide, 2mm thick, supplied in 3 metre lengths with fixing tape. 30mm black is the standard supplied through the calculator.
Channels	25mm, 30mm and 50mm. 30mm is standard through the calculator.
Maximum height	3000mm
Finishes	Four standard RAL powder coat colours
Safety standard	Toughened safety glass to BS EN 12600

RAL 9005 Black RAL 7016 Anthracite RAL 9006 Silver RAL 9010 White

For 25mm bars or 25mm channel, email sales@nationalglasspartitions.co.uk for a price.

Frameless partitions Framed door systems What partitions cost

Example pricing

Industrial and frameless partitions at three common widths. Enter your own sizes for an exact price.

Price Your Size

Width, with a frameless door	Frameless	Industrial
3 metres	£1,068.40	£1,584.22
4 metres	£1,366.33	£2,091.67
6 metres	£1,770.35	£2,605.97

Excluding VAT. Based on a 2400mm ceiling, 10mm toughened glass and a 900mm door.

Price your industrial partition

Enter the height and width of your opening, then choose the glass and the door. You get the price, a full materials list, a scale drawing with every panel size marked on it, and the cut length for every piece of channel. Order from the same page.

Configure & See Your Price

For a layout the calculator does not cover, email sales@nationalglasspartitions.co.uk or call 0800 772 3992

Looking for industrial glass partition parts?

Flat bars, angled edge bars, tape and channel are available on their own in RAL 9005 Black. Suitable if you already have your glass, or if you are adding the banded look to a partition that is already installed.
