Build your GLASS PARTITIONQUOTEKITS .
Clear Gasket for 12mm Glass - Clip in Side Track

Clear Gasket - Glazing Gasket for Clip in Side Double and Single Glazed Channel -12mm Glass

24mm Glass Partition U Channel - Anthracite Grey 7016

Glass Partition Track - Cover Plate - End Channel

Glass Partition Track

Rating:
98% of 100
As low as £49.61 £41.34

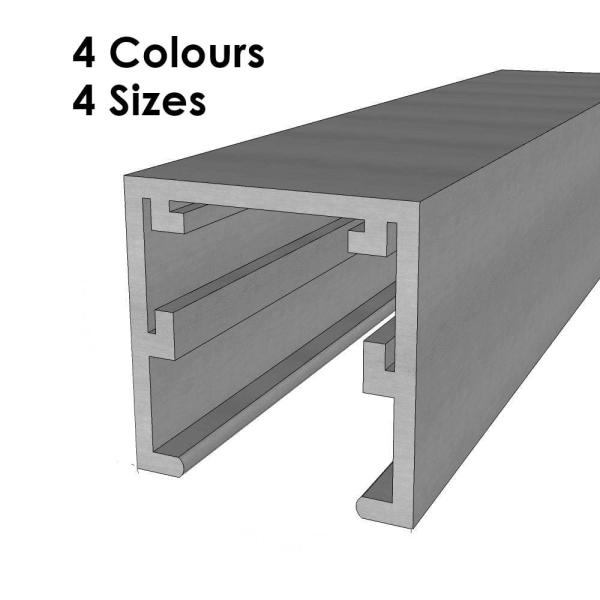

Glass Partition Tracks in 4 colours and 4 sizes:

Silver (RAL9006), Black (RAL9005), White (RAL9010), Anthracite (RAL7016)

24mm, 24mm clip in side, 35mm, and 50mm.

3m Length of glass partition channel. Suitable for 10mm and 12mm glass when used with our glazing gasket.

Choose from the options below.

SKU
UC3MVAR

Glass Partition Tracks in 4 colours and 4 sizes:

Silver (RAL9006) Black (RAL9005), White (RAL9010), Anthracite (RAL7016)

3m Length of glass partition channel. Suitable for 10mm and 12mm glass when used with our glazing gasket.

24mm, 24mm clip in side, 35mm, and 50mm.

When choosing the u channel for your ceiling, when used with our frameless glass doors, take the ceiling height minus the door height, minus 16-24mm, this should indicate the correct u channel. Please call if you need advice.

General usage would be 24mm glass partition track on ceilings and walls and 24mm clip in side glass partition channel on the floor.

Where there is no door way or if using a door frame, 24mm clip in side glass partition track allows you to manoeuvre the glass as required before slotting the face of the channel into place and securing with glazing gasket.

Where a greater tolerance is required, 35mm glass partition track can be used on ceiling and walls.

More Information
Weight0.050000
