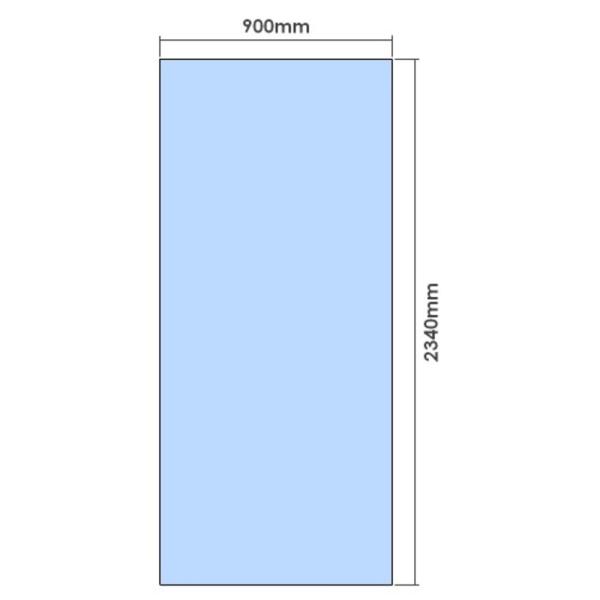

10mm Toughened Glass Panel 2340mm x 900mm.

Toughened glass panel for use in glass partitioning

Toughened to (BS6206/BS EN 12600)

If you are building your opening to suit these panels, make the opening 30mm taller than the panel and allow 5mm on either side of the panel for joining strips. Making the opening 30mm taller than the panel allows you to use a 38mm u channel on the ceiling and a 24mm u channel on the floor. You can then lift the panel into the top channel and lower it into the bottom channel, before inserting dry joins and fixing in place with gasket.

If you need help choosing u channel for an existing opening, please see our guide here, or call us and we will be happy to help.

£128.00 £106.67
Availability: In stock
SKU
2340X900P

10mm Toughened Glass Panel 2340mm x 900mm.

Toughened glass panel for use in glass partitioning

Toughened to (BS6206/BS EN 12600)

If you are building your opening to suit these panels, make the opening 30mm taller than the panel and allow 5mm on either side of the panel for joining strips. Making the opening 30mm taller than the panel allows you to use a 38mm u channel on the ceiling and a 24mm u channel on the floor. You can then lift the panel into the top channel and lower it into the bottom channel, before inserting dry joins and fixing in place with gasket.

If you need help choosing u channel for an existing opening, please see our guide here, or call us and we will be happy to help.

More Information
Weight52.650000
ColourClear
Panel Height2340
Door Height2310
Width900mm
Opening Height2350-2399
