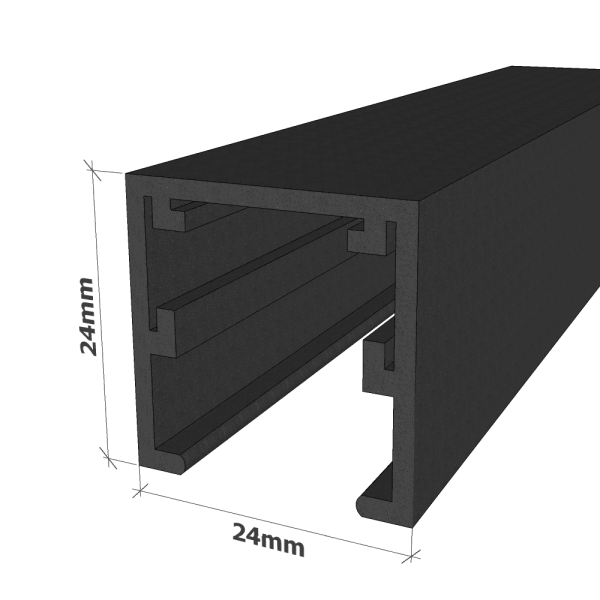

24mm U Channel for Glass Partitions in Anthracite Grey.
3m Length of U Channel in RAL 7016 Anthracite Grey . Suitable for 10mm and 12mm glass when used with our glazing gasket.
Dimensions:
Internal channel 19mm.
Aluminium thickness 3mm.
Channel lenght 3000mm.
Channel width 25mm.
Channel height 24mm.
U Channels are also available in White (RAL 9010), Black (RAL 9005) or Silver (RAL 9006) and in heights of 24mm, 35mm, 50mm, 60mm and 75mm.
When choosing the u channel for your ceiling, when used with our frameless glass doors, take the ceiling height minus the door height, minus 16-24mm, this should indicate the correct u channel. Please call if you need advice.
24mm U Channel for Glass Partitions in Silver .
3m Length of U Channel in RAL 7016 Anthracite Grey. Suitable for 10mm and 12mm glass when used with our glazing gasket.
Dimensions:
Internal channel 19mm.
Aluminium thickness 3mm.
Channel lenght 3000mm.
Channel width 25mm.
Channel height 24mm.
U Channels are also available in White (RAL 9005), Black (RAL 9005) or Silver (RAL 9006) and in heights of 24mm, 35mm, 50mm, 60mm and 75mm.
When choosing the u channel for your ceiling, when used with our frameless glass doors, take the ceiling height minus the door height, minus 16-24mm, this should indicate the correct u channel. Please call if you need advice.
Weight | 0.500000 |
---|---|
Colour | Anthracite |
Size | 24mm |
